Funcionalidades de Central



Grabación de Llamadas Correo de Voz

Pre-Atendedor

Comunicaciones de Audio/Vídeo

Sala de Conferencias(3)

Troncales SIP (10)

SKYPE para SIP

T.38 FAX(Pass-through)

Lista Negra

Agenda

Configuracion Centralizada Teléfonos IP

CDR (Registro detallado de llamadas)

IVR (Interactive Voice Responses)

DISA (Direct Inward System Access)

BLF (Busy Lamp Field)

DID (Direct Inward Dialing Number)

Multiples Lenguajes (Chinese / English / Portuguese)

Herramientas de deteccion de problemas

(Ping, Traceroute)

Capacidad del Sistema



30 Extensiones (Internos)

256MB de Memoria Flash

Grabaciones(GSM): 2100 min

VoiceMail (GSM): 2000 min

Funcionalidades de Llamada



Caller ID

Video Calls

Call Paging and Intercom

Call Forward

Call Pickup

Call Park

Call Group

Call Routing

Music on Hold / Transfer Call

Transfer

Call Hold

Call Waiting

Call Queue

Call Recording

Three-Way Conference

Protocolos y CODEC

Audio Codec:



G.711(a-law, u-law),G.729,G.726,

GSM,Speex

Video Codec Pass-through:



H.261,H.263,H.263+,H.264

Protocol:



SIP (RFC3261) , IAX2 DTMF: RFC2833, SIP INFO, In-band

Funcionalidades de Red



DHCP Server

IP Assignment (PPPoE / DHCP / Static)

VPN Client (Support N2N / L2TP)

Network Address Translation (NAT)

DDNS Client (Support Dyndns.org / No-ip.com)

Especificaciones de Hardware



1 WAN Port

1 Power Adapter Port

1 Reset Button

2 Analog Ports

Power Supply:

Input: 100 V ~ 240 VAC

Output: DC 12 VDC, 2.0 A



Especificaciones Ambientales



Temperatura: -10°C-45°C Almacenamiento Temperatura:-30°C-65°C Humedad: 10-80%

sin rocio



2.2 Hardware Structure

Here, we take ZX20-A202 as the sample to show the interface and the indicators.

2.2.1 Back Panel

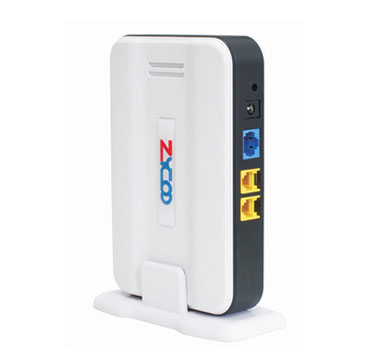

 2 Analog Port(RJ11)

1 Network Interface (RJ45)

1 Power Interface (DC 12V 2A)

1 Reboot Button



2.2.2 Front Panel



 Mark Function Status Description

PWR Power Status

On Power On

Off Power Off

SYS System Status On System working



6 - ZYCOO all rights reserved V3.2

Off System Failed

WAN WAN interface Status

Wink Data exchanging

Off No Data exchanging

Off No Data exchanging

Port1-Port2 Analog Modules Status

Green FXS channels

Red FXO channels

Off Failed



2.2.5 Packing List

 ZX20 IP PBX 1 Unit

 Power Adapter 1 Unit

 Quick Start Guide 1 Piece

 Product Maintenance Card 1 Piece

 Network Cable 1 Unit



3.1 Preparation Before Operation

What kind of IP Phone can be used with ZX20 IP PBX?

FXS Interface

 Analog Phone

 SIP Extension

 ZP Series IP Phones provided by ZYCOO(ZP302/ ZP502/ ZP502P)

 IP Phone which support SIP/ IAX2 protocol (eg: CISCO, Grandstream, etc.)

3.2 Before Making a Call

3.2.1 Login IP PBX

Getting IP Address

ZX20 Series IP PBX support 3 Ways to get the IP Address: Static/ DHCP

Default IP And Port of WAN:

 WAN Port IP: http://192.168.1.100:9999



Default configuration and function key

 Web GUI username: admin

 Web GUI password: admin

 **11 Play the IP Address of WAN port

 **12 Play the IP Address of LAN port

 600 Enter into the Voicemail Box

 900 Enter into the Meeting

 # Blind Transfer

 *2 Attended Transfer

 * Disconnect Call
